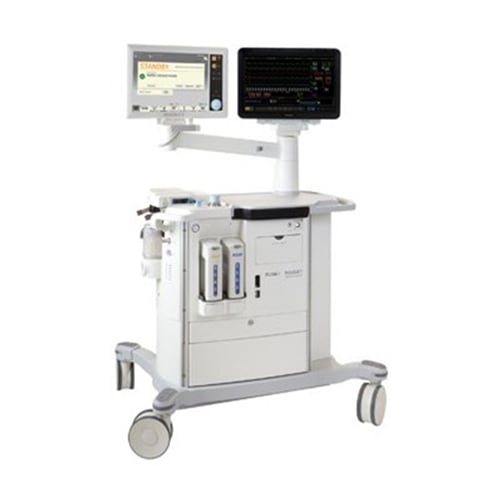

Maquet Flow- i C20 Anesthesia Machine
24-Hour QuotesPricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications
Maquet Flow- i C20 Anesthesia Machine Features
Along with a choice of storage options, the FLOW-i C20 features the standard rotatable arm for flexible screen positioning, tiltable screens to allow for maximized screen visibility and vertical and horizontal rails for auxiliary equipment. The inclusion of storage options and combinations means the FLOW-i C20 is a mobile ventilation and anesthesia unit that can be used across the widest range of patient groups, including those with acute respiratory demands and pediatric patients. FLOW-i is an anesthesia machine incorporating ventilation technology based on the highly regarded Maquet SERVO platform. It has a re-breathing device called the MAQUET VOLUME REFLECTOR which replaces traditional breathing circuits and provides additional security for the patient.
- Set tidal volume is accurately delivered in spite of high abdominal and thoracic pressure, helping to avoid hypoventilation.
- Fast rise time and high flow rates adapt to varying inspiratory demand in the presence of increasing airway pressure.
- Sensitive triggering improves synchrony in pediatric patients and those with decreased respiratory drive.
- Controlled pressure drop during expiration decreases expiratory resistance and work of breathing, in addition to minimizing auto-PEEP at higher respiratory rates.
- Maintains consistent and accurate PEEP levels
Maquet Flow- i C20 Anesthesia Machine Specifications
General
- Base system weight (depending on configuration): Approx. 155 kg Approx.
- Dimensions of base plate: 692 x 985 mm
- Height (1 drawer): n/a
- Height (2 drawers): 860mm
- Height (3 drawers): 1030mm
- Drawers2-3 (1 lockable)
- Vertical shafts for optional horizontal rails: 4
- Wheels: Four wheels (diameter 150 mm) with separate brakes
- Working surface/writing table Approx.: 420 x 600 mm
- Additional writing table: 397 mm x 250 mm
- Reading lamp: Adjustable LED light integrated into the display arm
Display
- Type LCD touch screen, complete with 11 membrane switches and one rotary knob
- Size 432 mm x 295 mm
- Placement Attached to display arm
- Viewing area 15”, 1024×768 pixels with a palette of 512 colors
- Waveforms Up to 6 waveforms, user configurable
- Trends Graphic display, 1 to 24-hour resolution
- Numeric display, 1 to 60-minute resolution
Environment
- Ambient temperature (operating Conditions): +15°C to +35°C (+60°F to +95°F) Ambient temperature (Desflurane: +15°C to +30°C,+60°F to +85°F)
- Ambient temperature (Non-operating Conditions): -25°C to +60°C (-15°F to +140°F)
- Battery (operating Conditions): +15° C to +35°C (+60°F to +95°F)
- Battery (Non-operating Conditions): +5°C to 40°C (40°F to 104°F)
- Relative humidity (non-condensing) (operating Conditions): 15% to 95%
- Relative humidity (non-condensing) (Non-operating Conditions): < 95%
- Atmospheric pressure (operating Conditions): 700 hPa – 1060 hPa
- Atmospheric pressure (Non-operating Conditions): 470 hPa – 1060 hPa
Refurbished Maquet Flow- i C20 Anesthesia Machine
Soma Tech Intl offers Maquet Flow-i C20 Anesthesia machines up to 50% below OEM prices with the same service and warranty as new. The Maquet Flow-i C20 is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts the anesthesia machine is carefully inspected and tested by our own in-house biomedical engineers who are highly skilled and certified to work on an anesthesia machine If necessary, parts are replaced to make sure that all aspects of the anesthesia machine are functioning properly. Once everything is in working order, the unit is calibrated back to the original engineering manufacturer’s specifications. This ensures that the unit is working the same way that it originally left the manufacturer. After the Maquet Flow-i C20 is working like new it undergoes a special cosmetic restoration process. The Maquet Flow-i C20 is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this strenuous refurbishing process, the unit functions and looks like new. Soma Tech Intl is ISO 13485 certified and ensures that the best quality is given to all capital medical equipment that they sell. Before the Maquet Flow-i C20 anesthesia machine is labeled patient-ready and packed up for shipment, it goes through one last quality control test that makes sure all aspects are again working as they should. If you are looking to buy a refurbished Maquet Flow- i C20 Anesthesia Machine contact soma at Soma@SomaTechnology.com or call us at 1-800-GET-SOMA.
Soma Tech Intl is also actively looking to purchase a Maquet Flow-i C20 If you or your facility is looking to sell your Maquet Flow-i C20 Anesthesia Machine, be sure to contact Soma Tech Intl. Soma has a dedicated and experienced purchasing department that helps you through the entire process. Selling your used or pre-owned Maquet Flow-i C20 to Soma Tech Intl takes out the middle man in the equation. This also ensures that your medical facility gets top dollar for your equipment. Soma is 100% HIPPA compliant and makes sure that your equipment gets to our facility in the same condition that it left yours. Soma Tech Intl also gives the option for trade-in credit on your medical equipment. If you have medical equipment you would like to sell to Soma, send us a message here!
