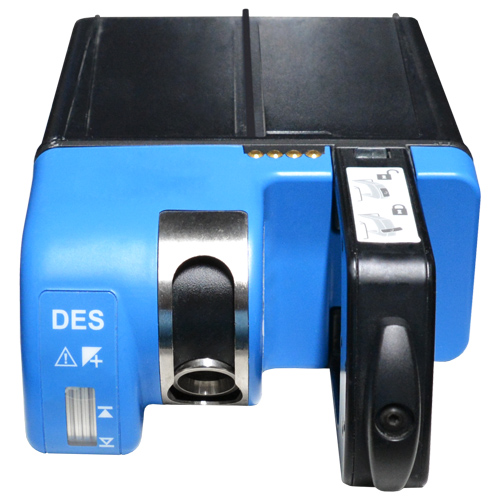

GE Datex Ohmeda Aladin 2 Cassette Desflurane
24-Hour QuotesPricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications
GE Datex Ohmeda Aladin 2 Cassette Desflurane Features
This Aladin 2 Cassette delivers a desflurane anesthetic agent electronically from the host anesthesia delivery system. The Aladin Cassette can be used on the GE Aisys CS2 anesthesia machine. Since these anesthesia vaporizers are electronically controlled, they feature automatic recordkeeping of set agent concentrations and agent usage calculations. The GE Aladin Cassette weighs in at less than 7.5 pounds and is easily carried. The desflurane Aladin 2 cassette comes in 2 different configurations related to refilling the anesthetic agent. It can come with the Safe-Fil filler system or Piramal fixed filler system.
- Prismatic site glass for clear indication of agent level.
- Automatic record-keeping on the anesthesia machine.
- Overfill protection.
- Electronic control.
GE Datex Ohmeda Aladin 2 Cassette Desflurane Specifications
Dimensions
- Height: 2.76 in. (7 cm)
- Width: 5.51 in. (14 cm)
- Depth: 9.45 in. (24 cm)
- Weight (empty): 6.2 lb (2.8 kg)
Agent Capacity
- Total: 240 mL
- Normal Fill (when the indicator shows empty): 140 mL
Filling
- Overfilling Protection: Overfilling prevention system built into the cassettes
- Filling system: Safe-Fil (Filler system compatible with Baxter’s system for Desflurane); Piramal Fixed Filler (Filler system compatible with Piramal system for Desflurane)
- Filling Speed: > 2 mL/s
Electronic Specifications
- Setting Ranges: OFF, 1 to 18% in fresh gas flow, resolution 0.2%
- Accuracy: 18 to 25 C 10% of setting or 0.5% v/v (whichever is greater) Fresh gas flow range 1 to 10 L/min; 10 to 35 C 20% of setting or 1% v/v (whichever is greater) Fresh gas flow range 0.2 to 15 L/min
Environmental
- Operating range: 10 to 35 C/50 to 95 F
- Storage range: -25 to 50 C/-13 to 122 F
