GE Datex Ohmeda Aladin 2 Cassette Isoflurane
24-Hour QuotesPricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications
GE Datex Ohmeda Aladin 2 Cassette Isoflurane Features

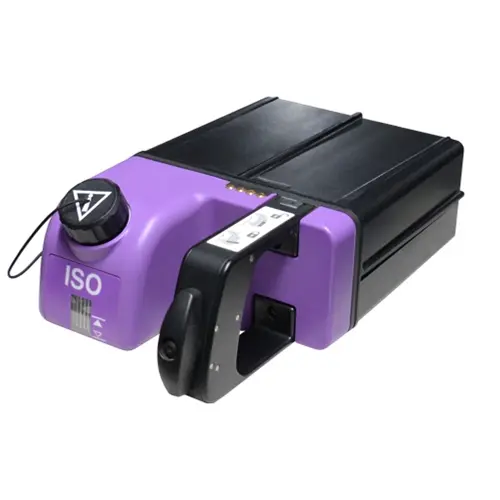

This Aladin 2 Cassette delivers an isoflurane anesthetic agent electronically from the host anesthesia delivery system. The Aladin Cassette can be used on the GE Aisys CS2 anesthesia machine. Since these anesthesia vaporizers are electronically controlled, they feature automatic recordkeeping of set agent concentrations and agent usage calculations. The GE Aladin Cassette weighs in at less than 7.5 pounds and is easily carried. The isoflurane Aladin 2 cassette comes in 1 configuration related to refilling the anesthetic agent. It comes with the Easy-Fil.
- Prismatic site glass for clear indication of agent level.
- Automatic record-keeping on the anesthesia machine.
- Overfill protection.
- Electronic control.
GE Datex Ohmeda Aladin 2 Cassette Isoflurane Specifications
Dimensions
- Height: 2.76 in. (7 cm)
- Width: 5.51 in. (14 cm)
- Depth: 9.45 in. (24 cm)
- Weight (empty): 6.2 lb (2.8 kg)
Agent Capacity
- Total: 220 mL
- Normal Fill (when the indicator shows empty): 125 mL
Filling
- Overfilling Protection: Overfilling prevention system built into the cassettes
- Filling system: Easy-Fil
- Filling Speed: > 2 mL/s
Electronic Specifications
- Setting Ranges: OFF, 0.2 to 5% in the fresh gas flow, resolution 0.1%
- Accuracy: 18 to 25 C 10% of setting or 0.2% v/v (whichever is greater) Fresh gas flow range 1 to 10 L/min; 10 to 35 C 20% of setting or 0.4% v/v (whichever is greater) Fresh gas flow range 0.2 to 15 L/min
Environmental
- Operating range: 10 to 35 C/50 to 95 F
- Storage range: -25 to 50 C/-13 to 122 F
