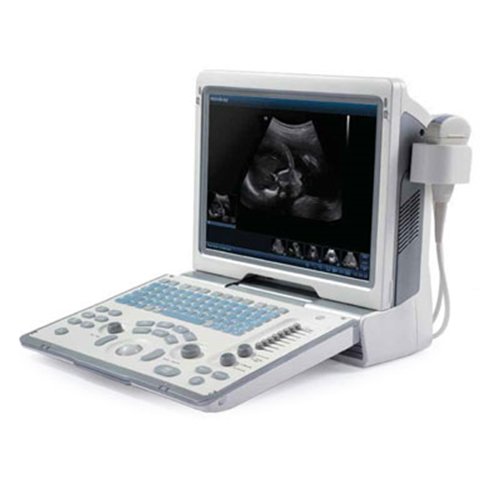

Mindray DP-50

Mindray DP-50 Ultrasound Features

Mindray’s DP-50 is a superior black & white ultrasound system that allows you to do more in less time without compromise in the quality of diagnosis. Designed as a stepping stone into the world of ultrasound, DP-50 will meet your needs for general practices while maintaining your budget.
Exceptional Ergonomics by Design
The DP-50 has been designed following a careful study of the changing needs of clinical practices. A smart new shape, enhanced mobility and more convenient operation make it a system that is well-suited for clinical settings.

• Sleek, streamlined, compact shape
• User friendly keyboard and controls
• Lightweight system for enhanced mobility
• Black and White
• 15” tilting wide-angle tilting display
• 2 USB ports
• Harmonic Imaging
• iClear speckle reduction
• iTouch auto optimization

Mindray DP-50 Ultrasound Specifications

Dimensions

• Unfolded: (W x H x D) 415mm (16.34in) x 396mm (15.59in) x 476mm (18.74in)
• Folded: (W x H x D) 415mm (16.34in) x 378mm (14.88in) x 190mm (7.48in)
• Weight: 7.7kg (without battery)

Electrical Power

Output

• • Voltage: 100 – 240V~
  • Frequency: 50/60Hz
  • Input current: 1.5 – 0.8A

Output

• Output power: 500W

Battery

• Lithin-ion Battery Pack: 14.8V, 660mAh
• Charge time: <3 hours (connected on AC power supply, with the system powered off)
• Endurance time: > 120 min

Boot Time

• Boot time: ≤ 23s
• Wake up Time (from Standby): ≤ 5.8s

Operating Environment

• Ambient temperature: 0°C ~ 40°C
• Relative Humidity: 30% ~ 85% (no condensation)
• Atmospheric pressure: 700hPa ~ 1060 hPa

Storage & Transportation Environment

• Ambient temperature: 20°C ~ 55°C
• Relative humidity: 30% ~ 95% (no condensation)
• Atmospheric pressure: 700 hPa ~1060 hPa

Standard Configuration

• Display: 15 in LCD, High resolution 1024 x 768
• Contrast and Brightness: Adjustable
• Screen Saver: time presettable
• Angle adjustable: 30°
• Control panel: Alphanumeric keys, Function keys
• User-defined keys: Function presettable
• 8 segment TGC Trackball: color & speed presettable
• Key Backlight: Brightness & Volume presettable
• Integrated Speakers Indicators: Power/Battery/Standby/ HDD status
