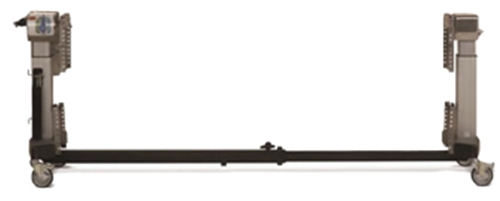

OSI Jackson Table 5803 Advanced Control Base
January 17, 2017![OSI Jackson Table 5803 Advanced Control Base OSI Jackson Table 5803 Advanced Control Base](https://www.somatechnology.com/app/uploads/2017/01/ISO-Jackson-Table-5803-Advanced-Control-Base.jpg)
OSI Jackson Table 5803 Advanced Control
The Advanced Control Base is the primary component of the Mizuho OSI Modular Table System. It is designed to easily interface with a C-arm and be utilized with three, interchangeable tops which are specifically designed to support patient positioning for a variety of surgical procedures.
Features
- Dual column design, easy C-arm access
- I-beam retractable for ease of storage
- Designed for use with gimbaled, Mizuho OSI modular tops
- AC and battery operation
- Powered lateral tilt and table articulations
- Hand Pendant controls Height, Lateral Tilt (roll) and Trendelenburg /Reverse Trendelenburg
- Hand Pendant provides visual confirmation of Rotation Lock Status, Rotation Safety Lock Status, Tilt Drive Status and Battery Status
- Steer caster, foot end of base
- Cord wrap
- Quiver for T-pin storage
- H-Frame storage brackets
- Four independent locking casters
Specifications
Physical Specifications
- Height Range with Table Top: 27 in – 48 in. (69cm. – 122 cm.) dependent on table system
- Modular Base Width: 32 in. (81 cm.)
- Modular Base Length: 102 in. (259 cm.)
- Length of Base Retracted: 64 in. (163 cm.)
- Trendelenburg /Rev Trendelenburg: 10 degrees
- Lateral Tilt (roll): 25 degrees
- Patient Weight Capacity: 500 lbs. (227 kg.) dependent on table system
