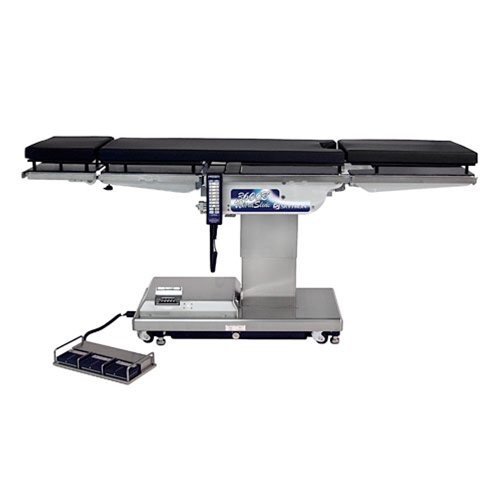

Skytron 3600B Table

Skytron 3600B Features

The UltraSlide 3600B represents the visionary benchmark in Top Slide surgical table design, including even greater imaging versatility, lift and articulation power. Expanded features provide optimal patient positioning and C-arm access with 23” Top Slide, 1,000 lb. lift, 800 lb. articulation and full table functions. Additional features include removable back and leg sections, Auto Beach Chair position, 30° tilt, Trendelenburg and reverse Trendelenburg, and more! Optional Infrared (IR) Wireless Table Control is also available.

• 1000 pound lift
• 800 pound articulate capacity
• 24 inch minimum table height
• 23 inch top slide travel
• 57 inch imaging window capacity
• Return-to-level
• Auto Beach Chair Position
• Removable back and leg sections
• Full body imaging without special accessories
• Durable one-touch pendant control
• Battery power

Skytron 3600B Specifications

Dimensions

• Length 69″ (1750 mm)
• Length (with head rest) 82″ (2080 mm)
• Width 19.5″ (500 mm)
• Width (with side rails) 22″ ( 560 mm)
• Weight of operating table 800 lbs (365 kg)
• Maximum permissible load (Lift) 1000 lbs (455 kg)
• Maximum permissible load (Articulation) 800 lbs (365 kg)

Adjustments

• Height 24 – 42.5 in (610 – 1080 mm)
• Lateral tilt (left/right) 30°
• Trendelenburg/Reverse Trend 30°/30°
• Power Kidney Bridge 5.75 in 145 mm
• Back up/down 90°/40°
• Leg up/down 15°/100°
• Top slide/head 9.5 in (240 mm)
• Top slide/foot 13.5 in (340 mm)
• Flex/Reflex 40°/90°
• Base braking (lock/unlock) Yes
• Return to level Yes
• Skytron Part Number 3600B Ultraslide
