Welch Allyn VideoPath

24-Hour Quotes

Pricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications

Welch Allyn VideoPath Colposcopes Features

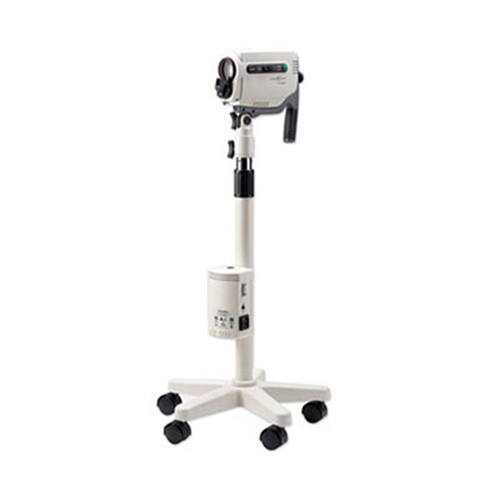

Welch Allyn’s true video colposcope combines superior light and high-resolution video to provide full-screen, images in a compact design. The Video Colposcope is an important diagnostic tool for cervical colposcopy, high-resolution anoscopy, and sexual assault or abuse examinations. Video colposcopy provides the added option of simultaneous viewing for you and your patient, creating a unique opportunity for clinical screening and treatment education.

  • Direct-to-screen provides full-screen, high-resolution images of view
  • HID lamp offers 50% whiter, brighter light than halogen for true tissue color
  • No couplers or beam splitters to degrade image quality or field
  • Push button on-screen magnification index
  • Unique polarization filter removes glare for accurate tissue assessment
  • An electronic green filter removes red from an image with no light loss
  • Store, retrieve, compare, annotate, and transmit images
  • Advanced image management and a variety of documentation options are available
  • Image clarity — No couplers or beam splitters to degrade image quality or field of view. High-resolution LCD monitor and unique 1/4″ CCD/optics design provide full-screen, high-resolution imaging.
  • 4.5X–30X magnification range — Magnification index displayed on the screen with the simple push of a button.
  • Superior illumination — Proprietary Welch Allyn Solarc lamp generates light 50% brighter and whiter than any halogen light source for truer tissue color.
  • Easy to use — Compact design with ambidextrous controls. > Unique polarization filter — Removes glare from the image for better visibility.
  • Electronic green filter — Electronically removes red from the image with no light loss.
  • Simultaneous viewing capabilities — Ideal for training and patient education.
  • Sony UP-20 video printer — High-resolution video printer designed for Medical Applications



Welch Allyn Video Colposcopes Specifications

Dimensions

  • Vertical Stand: Low: 36in ( 74.9 cm), High: 46 in (116.8 cm)

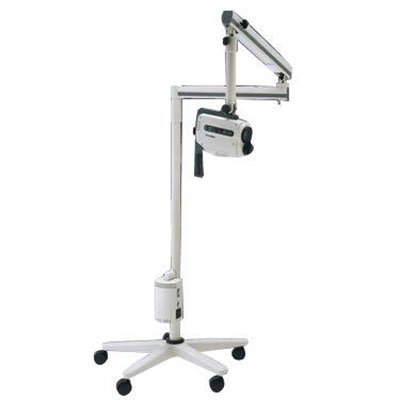

  • Swing Arm: Low: 29.5 in (74.9cm), high:49.5 in ( 125.7cm)
  • Optical Centerline to swing arm bottom: 15 in (38.1cm)
  • Colposcope:
    • Height: 8.25 in (21 cm)
    • Width: 5.75in ( 14.6 cm)
    • Depth: 3.37 in ( 8.6cm

Weight

  • Colposcope: 3.1 lbs (1.4kg)
  • Vertical Stand: 25 lbs (11.3 kg)
  • Swing Arm stand: 80 lbs. (36.3 kg)

Video Colposcope Specifications

  • Focal Length: 300 mm (12 in)
  • Magnification (relative to a 14-inch. monitor): 4.5 x 30x (typ.)
  • Field of view: 66 mm – 14mm
  • Depth of Field: 112 mm – 5 mm

Operating Environment

  • Ambient temperature: 50° F (+10° C) to 104°F (+40° C)
  • Relative Humidity:95% max
  • Atmospheric Pressure: 70kPa to 110kPa

Illumination

  • Lamp Type: 21-watt metal halide arc
  • Lamp Life: 750 hrs @ 1 hr per start
  • Brightness Adjustment: Automatic electric shutter
  • Lamp voltage: 60 Volts
