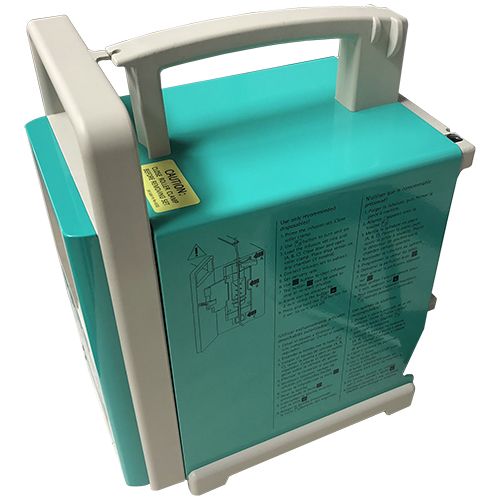

B. Braun Vista Basic Infusion Pump

24-Hour Quotes

Pricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications

B. Braun Vista Basic Infusion Pump Features

The B.Braun Vista Basic is a volumetric infusion pump intended to provide an accurate and continuous flow of parenteral and enteral fluids. The standard delivery rate ranges from 0.1 to 999.9 ml/h with intrafix and 0.1 to 800 ml/h with Vista Pump Set. This unit is operated via a membrane keypad and equipped with a liquid crystal display to show the delivery rate and operating support to the user. As a workhorse in the outpatient market, it offers a rugged and reliable design, all relevant therapies such as continuous, piggyback, and program mode, and a selection of cost-effective, straight-line gravity sets.

  • The robust design of mechanical components ensures maximum durability.
  • Linear peristaltic pump.
  • Can be operated as a stand-alone unit or integrated into an intensive care unit.
  • The battery provides at least 3 hours of operation at the highest delivery rate.
  • Easy to use, teach, and learn.
  • Using a drop sensor eliminates the need for pre-setting a VTBD in continuous mode and senses upstream occlusions and empty solution containers.

B. Braun Vista Basic Specifications

Dimensions

  • Height: 9.4 in (24 cm)
  • Width: 5.5 in (14 cm)
  • Depth: 7.8 in (20 cm)
  • Weight: 6.8 lbs (3.1 kg)

Mechanism

  • Linear peristaltic volumetric infusion pump

Power

  • VAC: 100-120 VAC
  • Hz: 50-60 Hz
  • Watts: 13 Watts
  • Leakage Current: Max 30µA

Battery

  • Type: Nickel-cadmium (rechargeable)
  • Amp Hours: 1.2Ah
  • Volts: 7.2V
  • Operating Time: ˜3.5 hours at 125 mL/hr
  • Charge Time: Approx. 16 hours

Infusion Rates

  • Intrafix Tubing: 0.1 to 999.9 mL/h
  • Vista Tubing: 0.1 to 800.0 mL/h
  • KVO Rate: 1 mL/h or selected rate, whichever is lower
  • Flow Rate Accuracy: ±5% measurement time 8h5, temp. 71.6°F

Alarms

  • Air-in-Line, Low Battery, Plug In Now, Bag Empty, Downstream Occlusion, Door Open, Pump Stopped, KVO, Unit Malfunction

Air-in-Line Alarm

  • Air bubble size 0.3mL (Can be set from 0.01 to 0.3 mL in service) or 1.5mL/hr (Can be set from 0.5 to 3.5 mL/hr in service program)

Modes/Features

  • Continuous and Piggyback Modes, Program Mode for variable infusions, Ramp/Taper Mode for TPN infusions and Delay A Mode for postponing infusion start and finish

Memory

  • User option to retain last Continuous and Piggyback Mode data upon power up. Permanent data retention in Program and Ramp/Taper Modes after the pump is turned off

Operating Temperatures

  • Operating: 64.4° F to 95° F, 10.15 PSI to 15.37PSI
  • Non-Operating: -13° F to 131° F, 10.15 PSI to
  • 15.37 PSI
