Invivo MDE Escort Prism SE

24-Hour Quotes

Pricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications

Invivo MDE Escort Prism SE Features

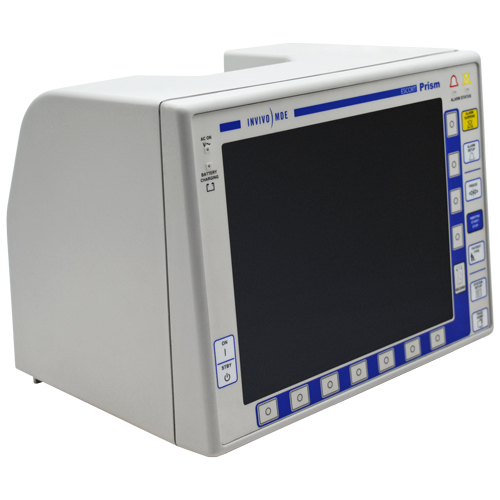

The Invivo MDE Escort Prism SE is an adult, pediatric, or neonatal patient monitor. It monitors ECG, respiration, temperature, NIBP, IBP, SpO2, CO, and ETCO2. Weighing around 10.5 pounds, this monitor has one rechargeable sealed lead acid battery that allows up to 3.5 hours of operating time when disconnected from AC power. This Invivo monitor can transmit vital sign data and waveforms wirelessly to an ESCORT-Link or ESCORT Vision central station when equipped with a modular transponder.

  • Monitors adult, pediatric, and neonatal patients.
  • 3, 4, or 5, displayable traces.
  • 3.5-hour battery run time.
  • 10.4-inch display.

Invivo MDE Escort Prism SE Specifications

Dimensions

  • Height: 8.9 in (22.6 cm)
  • Width: 11.8 in (30 cm)
  • Depth: 10.2 in (19.3 cm)
  • Weight: 10.5 lbs (4.8 kg) (With one battery pack)

Display

  • Type: Color Active Matrix TFT LCD
  • Size: 10.4 in./26.4 cm diagonal
  • Resolution: 640 x 480 pixels
  • Number of Traces: 3, 4, or 5
  • Trace Length: 5 seconds

Power

  • Battery Pack: 1 – each 12V; 7.0AH Rechargeable Sealed Lead Acid
  • Maximum Operating Time: 3.5 hrs.
  • Battery Charge Time: 8-10 hrs to 90% with unit in standby
  • Battery Level Indicator: Screen messages and audio tones
  • Ac Main: 115/230VAC autosensing, 50 to 60 Hz selectable
  • External DC In: 12 to 28VDC, 3A max – charge batteries
  • Power: 27 W

ECG

  • Range: 10 to 300 BPM
  • Accuracy: ±2% or ±2 BPM
  • Sweep Speed: 12.5, 25 mm/sec selectable
  • Leads: 3 leads: I, II, or III selectable;
  • 5 Lead/Dual Vector: I, II, III, or V selectable

Respiration

  • Range: 4 to 200 BPM
  • Accuracy: ±2% or ±2 BPM
  • Lead: RA to LA
  • Display Sensitivity: 0.25 to 3 ohm/cm selectable
  • Min. Detection Sensitivity: 0.1 to 1.2 ohm depending on the display setting
  • High Limit Range: 5 to 150
  • Low Limit Range: 5 to 50
  • Apnea Delay: 10, 15, 20, 30, 40
  • Sweep Speed: 1.56, 6.25, 12.5, 25 mm/sec selectable

Temperature

  • Channels: 1 or 2
  • Range: 20 to 50° C (68 to 122° F)
  • Alarm Limit Range: 20-44° C
  • Accuracy: ±0.1° C
  • Probe: YSI 700 or 400, autosensing
  • Connector: 1/4 inch (0.6 cm) stereo phone jack

NIBP

  • Measurement Method: Oscillometric
  • Systolic Measurement Range: 30 to 275 mmHg ADULT, 30 to 170 mmHg PED, 30 to 140 mmHg NEO
  • Diastolic Measurement Range: 20 to 240 mmHg ADULT, 20 to 125 mmHg PED, 20 to 100 mmHg NEO
  • Pulse Rate: 30 to 250 BPM
  • Measurement Time: 40 seconds typical

SpO2 (Masimo/Nellcor)

  • Range: 1 to 100%
  • Accuracy: ADULT: 70 to 100% ±2 digits; 50 to 69% ±3 digits; NEO: 70 to 94% ±3 digits
  • Pulse Rate Range: 20 to 250 BPM
  • Pulse Rate Accuracy: ±3 BPM
  • High Limit Range: 70 to 100%
  • Low Limit Range: 50 to 99%

Cardiac Output

  • CO Range: 0.1 to 19.99 liters/minute
  • REF Range: 1% to 85%
  • Blood Temp. Range: 17.5 to 43° C
  • Injectate Temp. Range: 0 to 27° C

Cardiac Output

  • CO Range: 0.1 to 19.99 liters/minute
  • REF Range: 1% to 85%
  • Blood Temp. Range: 17.5 to 43° C
  • Injectate Temp. Range: 0 to 27° C

ETCO2

  • Type: Oridion Module
  • Flow Rate: 50 ml. min ±7.5 ml/min
  • Resp Range: 0 to 150 bpm
  • System Response Time: 2.9 seconds
  • CO2 Report Resolution: 1 mmHg

Recorder

  • Channels: Any 1 or 2 waveforms, user selectable
  • Resolution: 8 dots/mm vertical, 32 dots/mm horizontal
  • Paper: 40 mm grid; 50 mm width
  • Sweep Speed: 6.25, 12.5, 25 mm/sec; 1 mm/sec Trend
  • Manual Record Duration: 16 seconds, 12 seconds memory
