Mizuho OSI 5803 Advanced Control Base – Jackson Table Base Features

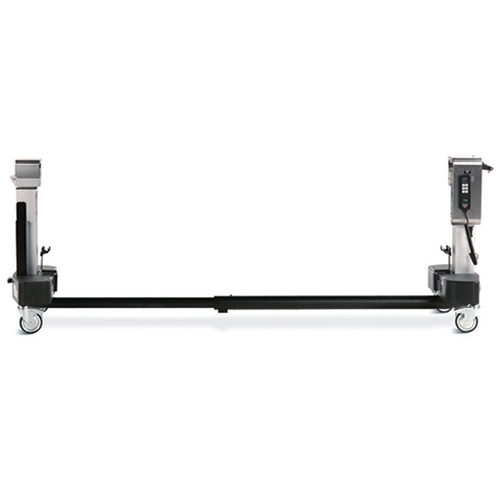

The Mizuho OSI Advanced Control Base is the primary component of the Modular Table System (MTS). This Jackson Table base is designed to easily interface with a C-arm and be utilized with three interchangeable tops. These three tops are specifically designed to support patient positioning for a variety of surgical procedures on the Jackson Table Frame.
- Dual column design, easy C-arm access
- I-beam retractable for ease of storage
- Designed for use with gimbaled, Mizuho OSI modular tops
- AC and battery operation
- Powered lateral tilt and table articulations
- Hand Pendant controls Height, Lateral Tilt (roll), and Trendelenburg / Reverse Trendelenburg
- The Hand Pendant provides visual confirmation of the Rotation Lock Status, Rotation Safety Lock Status, Tilt Drive Status, and Battery Status
- Steer caster, the foot end of the base

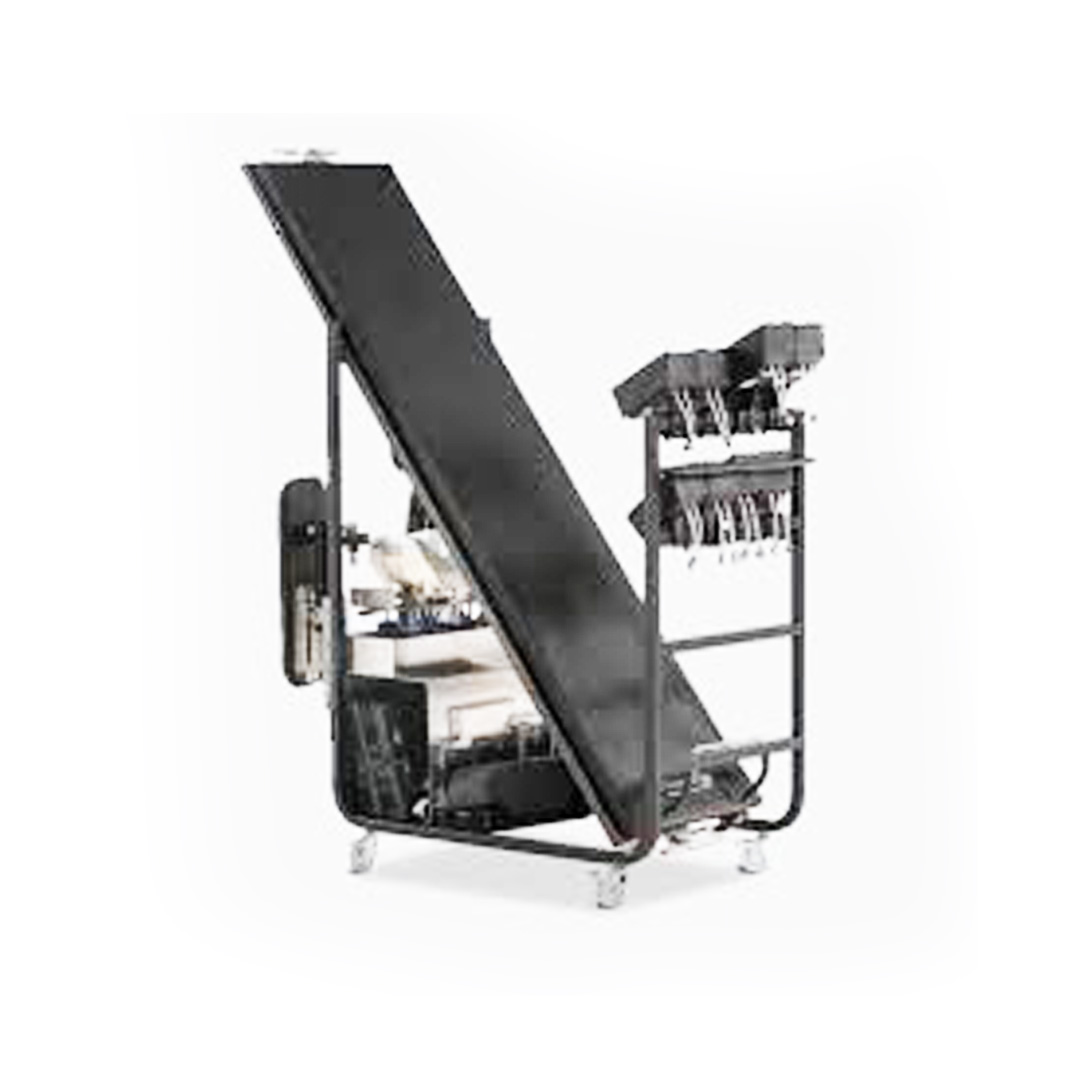

- H-Frame storage brackets
- Four independent locking casters
Mizuho OSI 5803 Advanced Control Base Specifications
Dimensions
Table Top Floor Height
- Spinal and Imaging Top: 27 – 48 in (69 cm – 122 cm)
- Ortho Trauma Top: 34 – 50 in (86 cm – 127 cm)
Movements
- Trendelenburg: 10 Degrees
- Reverse Trendelenburg: 10 Degrees
- Lateral Tilt: 25 Degrees
General
- Base Width: 32 in (81 cm)
- Max Base Length: 102 in (259 cm)
- Min Base Length: 64 in (163 cm)
- Patient Weight Capacity: 500 lb (227 kg)
Power
- Voltage: 120V
- Frequency: /60 Hz
